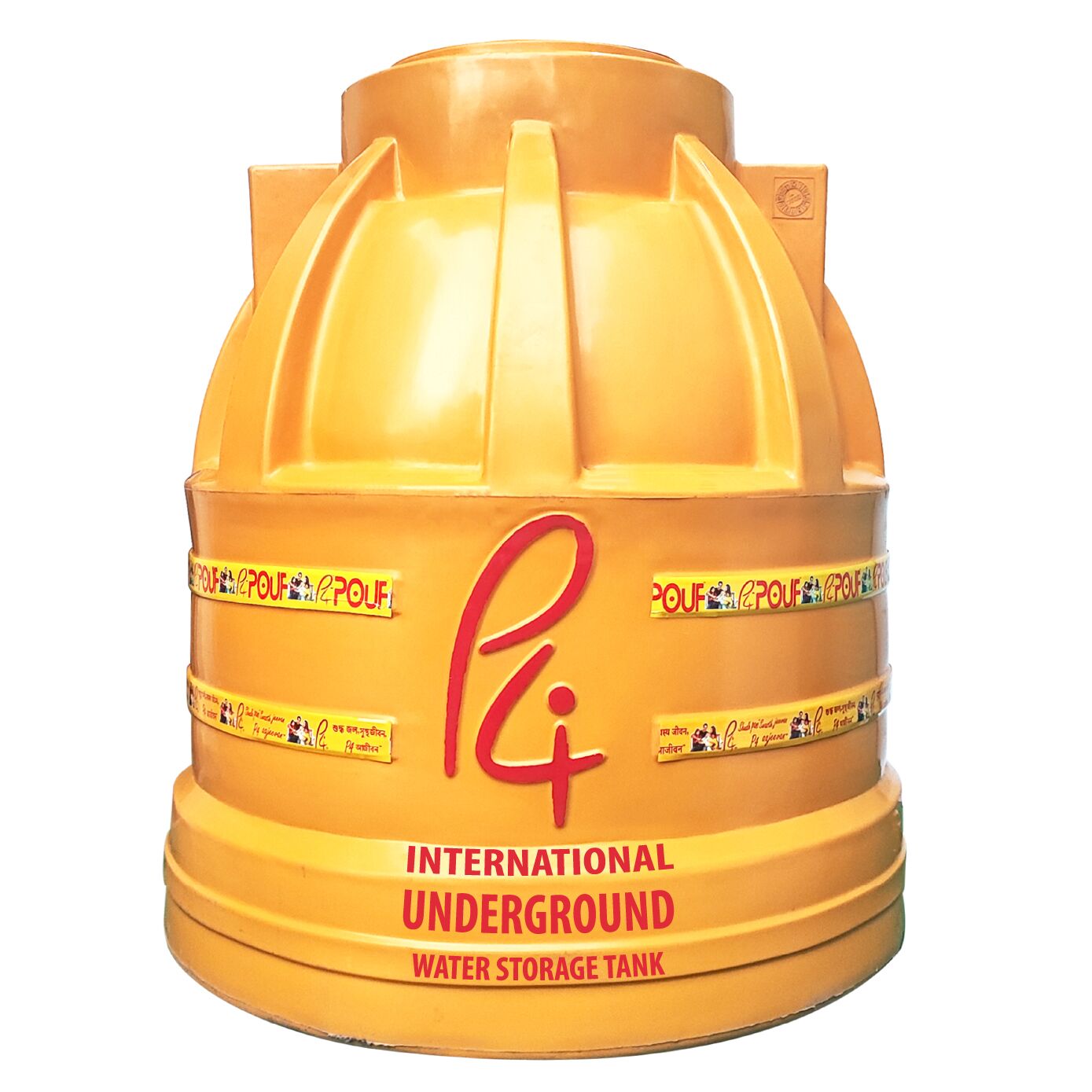

P4 INTERNATIONAL® Underground Water Tank
P4 INTERNATIONAL® Underground Water Tank - Image 2
P4 INTERNATIONAL® Underground Water Tank - Image 3
P4 INTERNATIONAL® Underground Water Tank - Image 4
P4 INTERNATIONAL® Underground Water Tank - Image 5

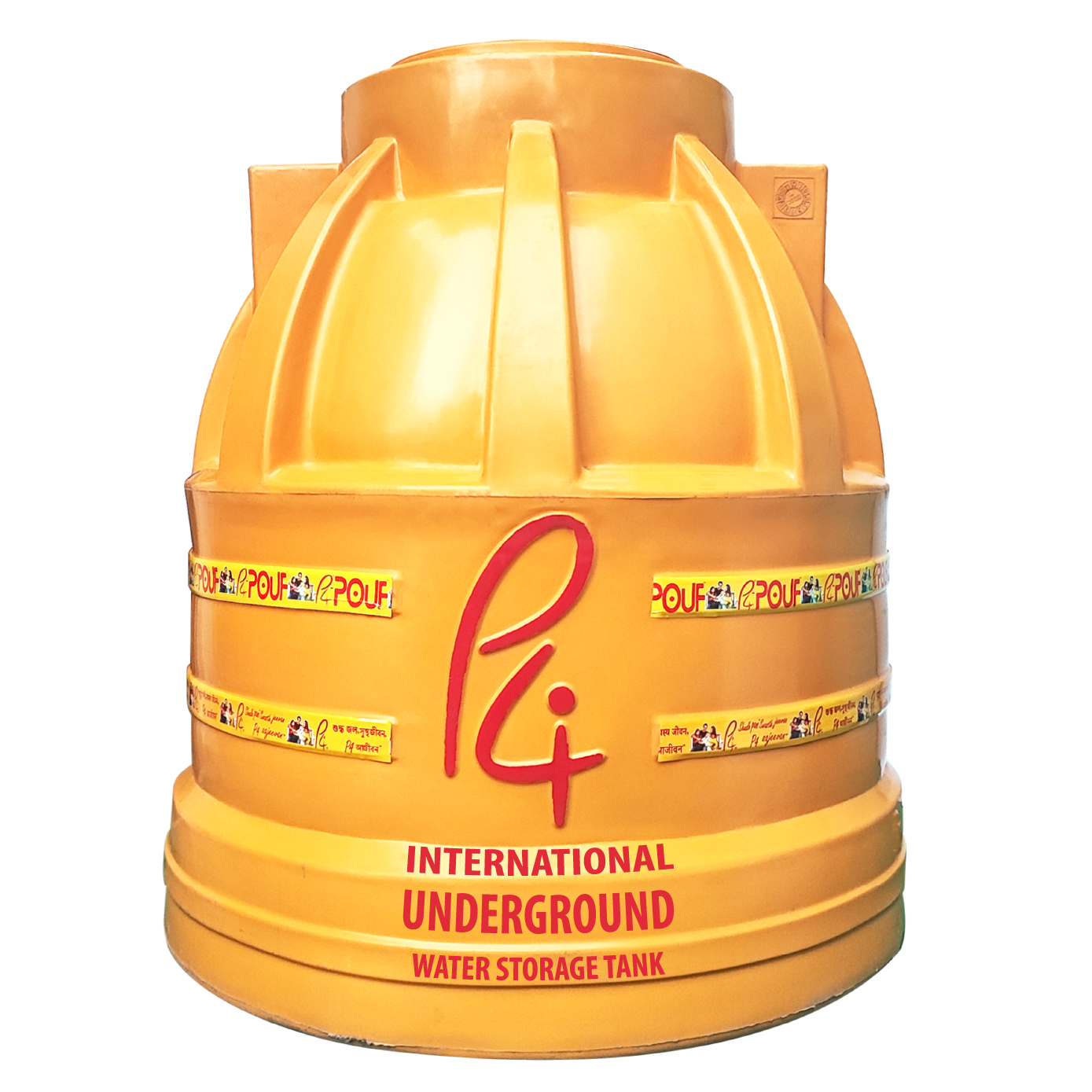

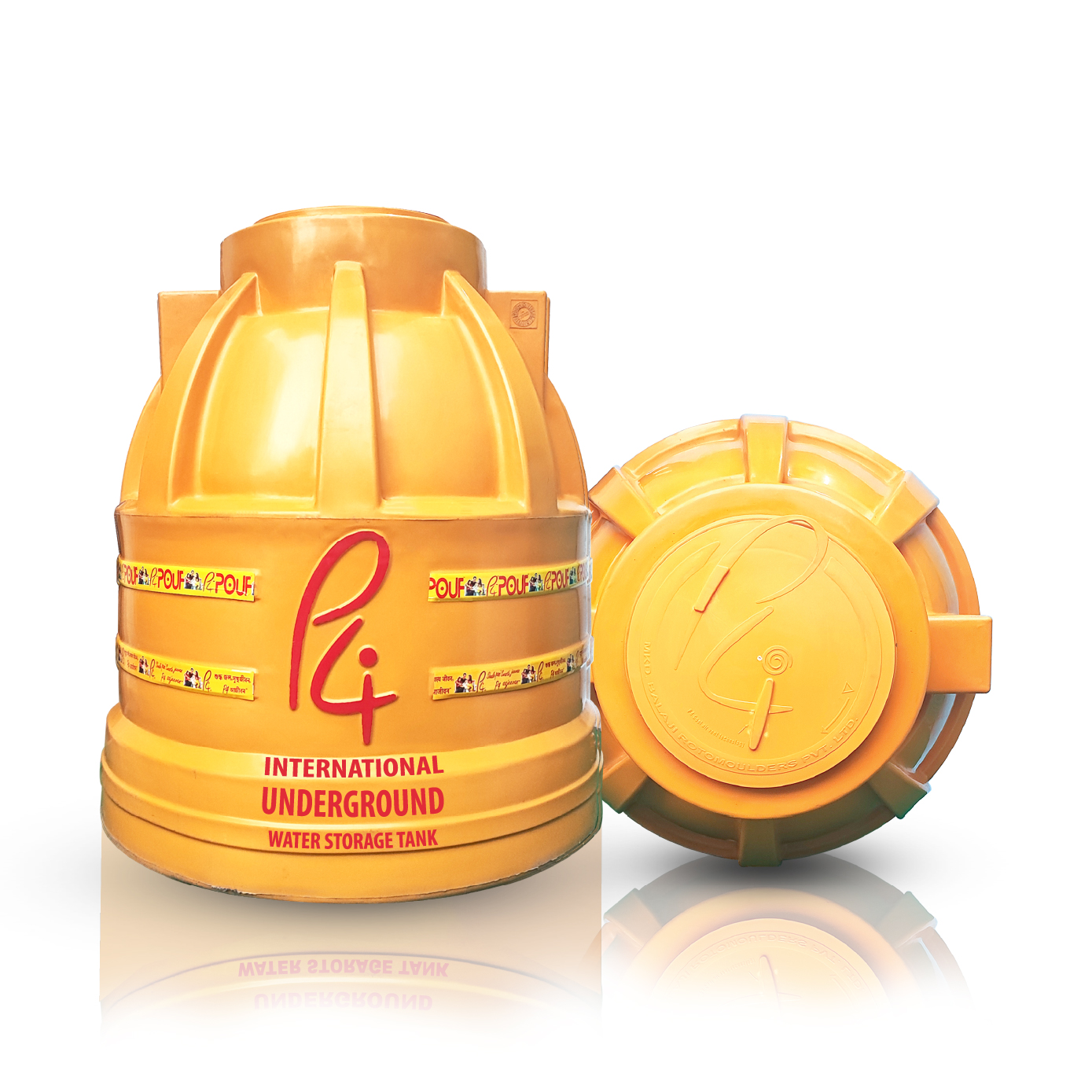

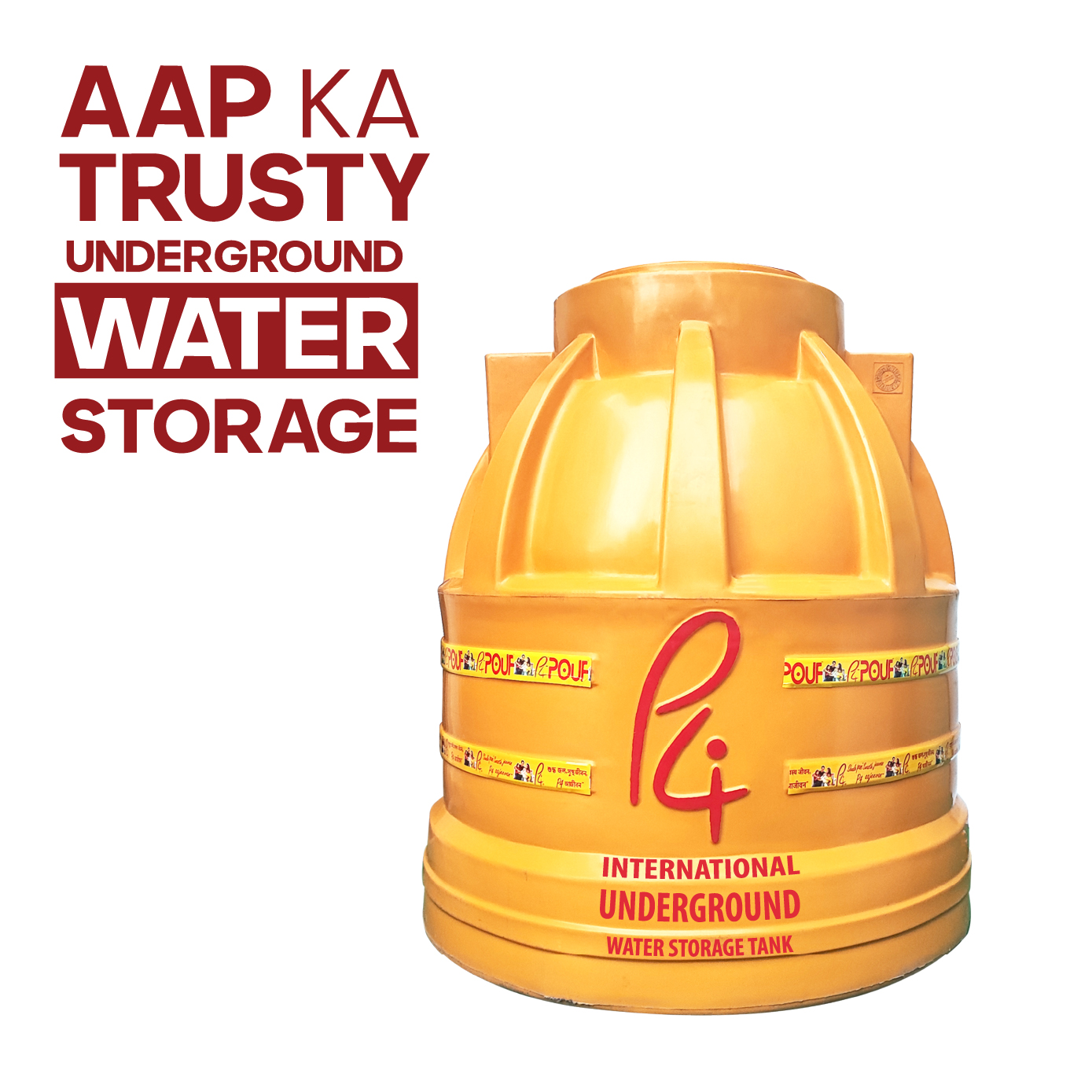

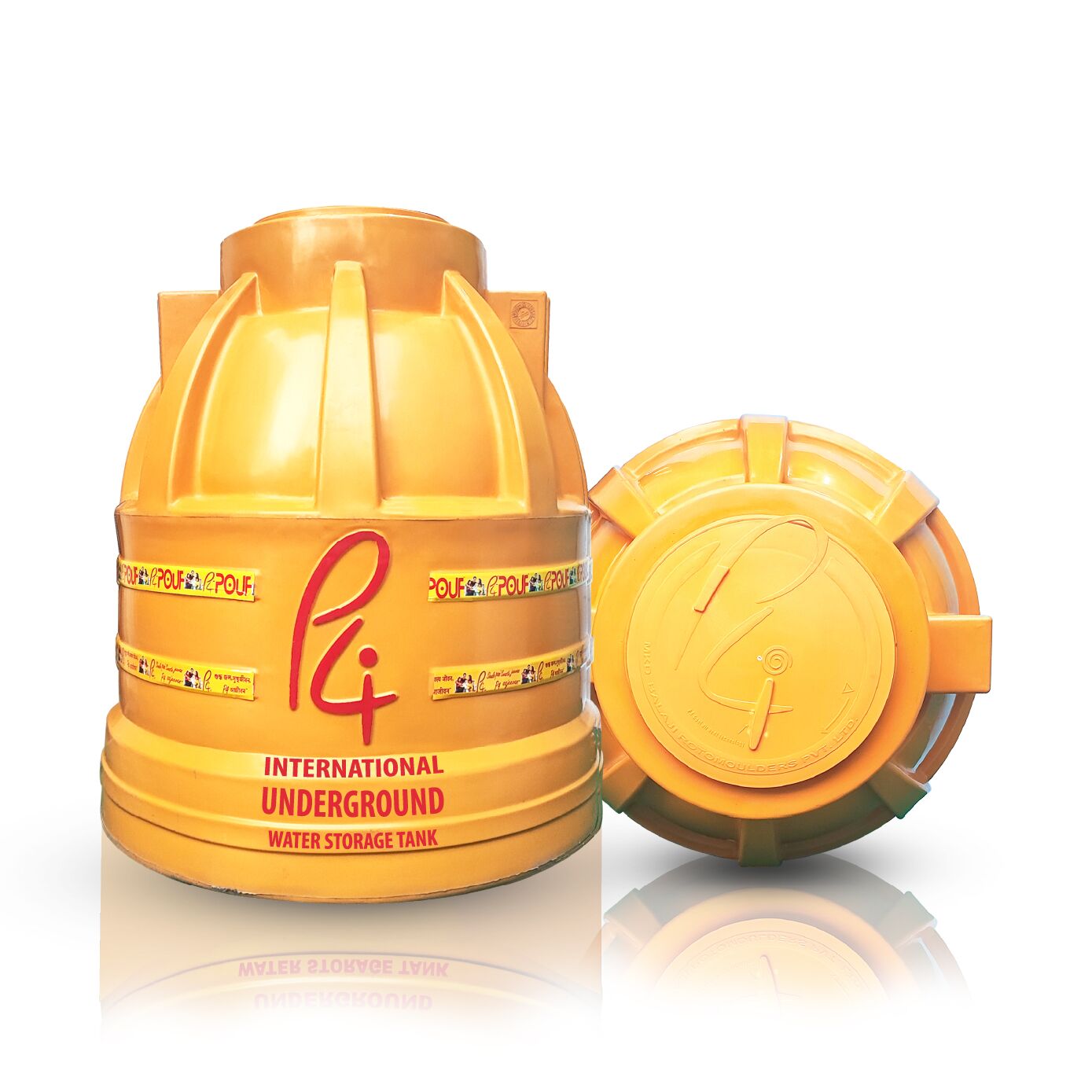

P4 INTERNATIONAL® Underground Water Tank

QUALITY ASSURANCE

All P4 products like Cock, Mixer, Shower go through three stage quality check process wherein we thoroughly inspect its tear strength, internal mechanism longevity, color adaptation & water quality.

QUALITY ASSURANCE

All P4 products like Cock, Mixer, Shower go through three stage quality check process wherein we thoroughly inspect its tear strength, internal mechanism longevity, color adaptation & water quality.

  • High wall Thickness | Secure water tank lifespan
  • Temperature Barrier | Foaming for high thickness in middle layers and works as temperature barrier.
  • Heat Protection | Maintain normal water temparature in scorching summer and avoid boilling water & plastic contamination.
  • Outer layer Anti-Degradation | UV-16 Polymer reduces degradation of outer layer and increases life of the water tank with infrarays redection (IRR Technology from Japan)
  • D2LF technology | 2 Pcs Foam insulation Lids protects water from Temparature, safety against breeding of mosquitoes and security against super cyclones.
  • Food-Grade Certificate Successfully ROHS tested & Migration Tested (ED 10/2011).
SKU: P4-INT-UD-GY Category: Brand:

Share

ENQUIRE FOR PRICE
REQUEST A CALL BACK
PRODUCT BROCHURE

Thick-Walled Durability

Robust wall thickness ensures long-lasting protection and extends the tank’s service life.

Temperature Control Foam Layer

Middle-layer foaming acts as a heat barrier, keeping water cooler even in high temperatures.

UV-16 & IRR Technology

Outer layer resists degradation from sunlight using advanced UV-16 polymer and Japanese IRR tech.

D2LF Lid Safety Design

Dual lids offer thermal insulation, mosquito prevention, and cyclone resistance.

Food-Grade Certified Interior

ROHS & EU Migration tested inner layer ensures water remains clean, healthy, and safe to drink.

Extra Storage Capacity

Smart design allows up more water storage without increasing tank size.

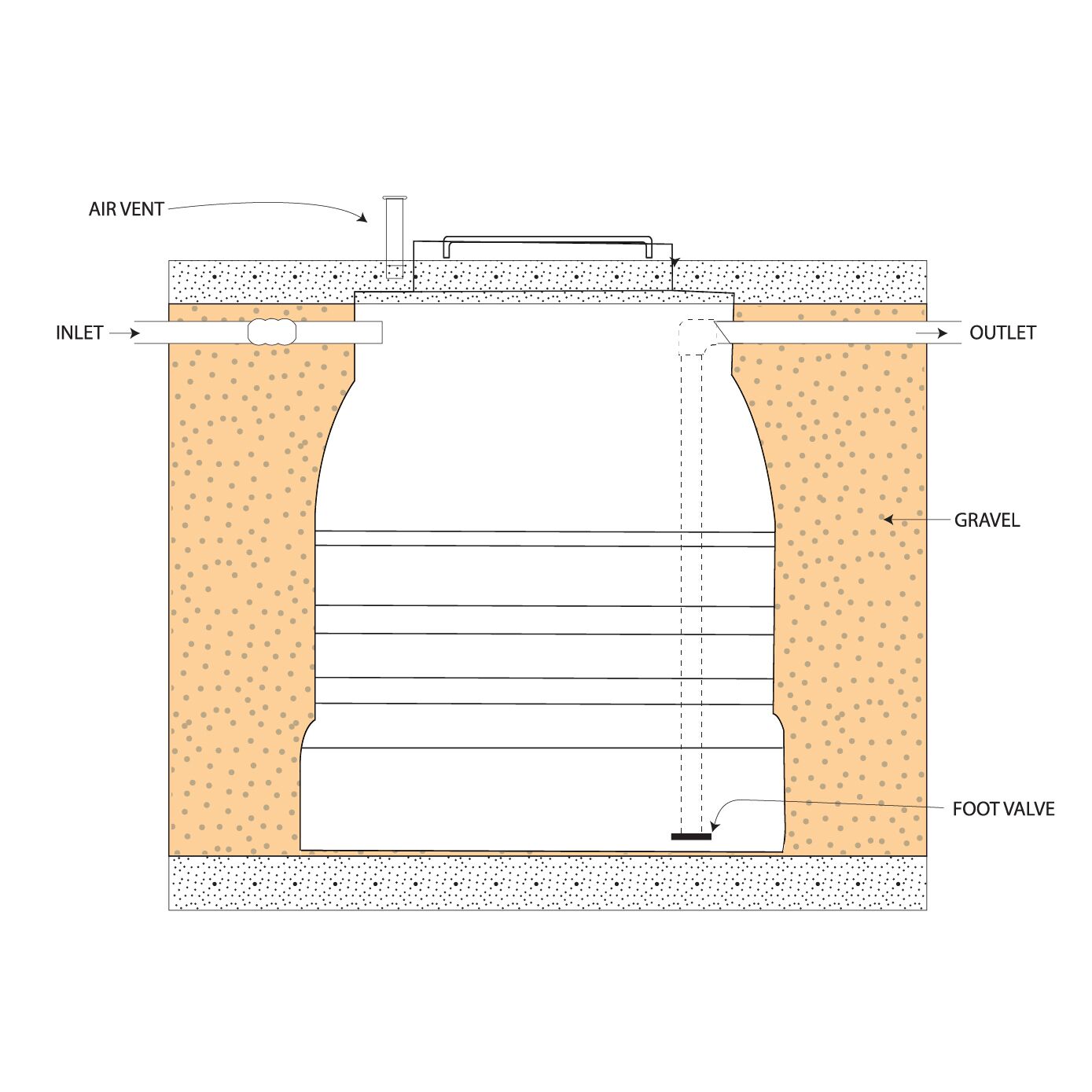

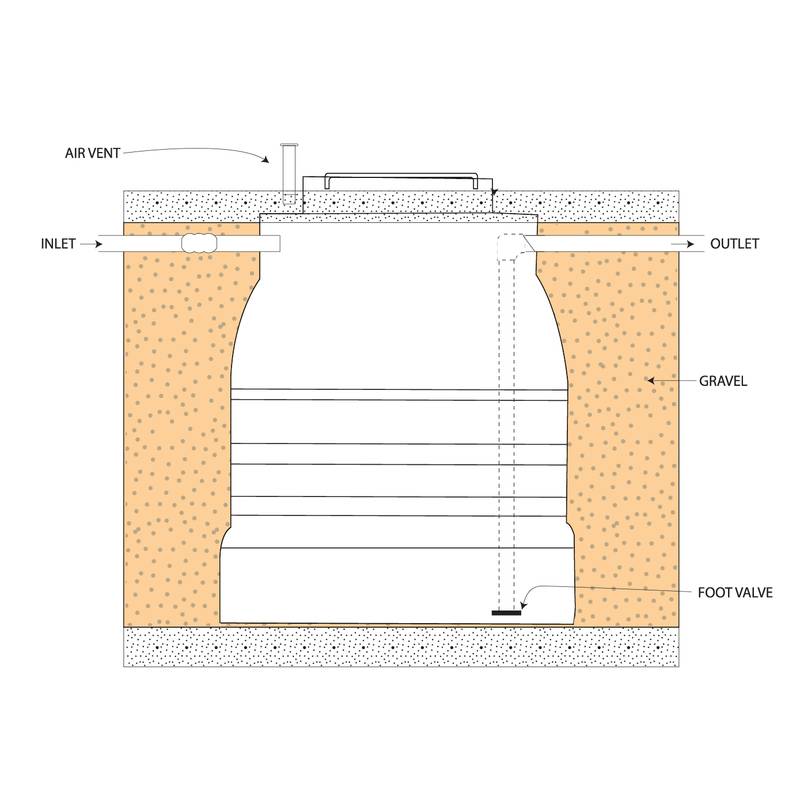

🔸Saves Space | Installed underground, leaving your surface area free for other use.
🔸Visually Clean | Hidden from view – keeps your property neat and clutter-free.
🔸Temperature-Protected | Naturally insulated underground – no freezing in winter, no overheating in summer.
🔸Clean Water Storage | No sunlight means no algae. Keeps water fresh and safe.
🔸Secure & Safe | Less visible = less risk of theft, damage, or tampering.
🔸Budget-Friendly | Lower costs compared to concrete tanks – and no guard wall required in most soil conditions.
🔸Leak-Proof & Tough | One-piece molded design ensures zero leakage and high durability.
🔸Root-Resistant | Tree roots can’t crack or enter the tank.
🔸Chemical-Safe | Suitable for storing water, agricultural liquids, or industrial fluids.
🔸Rainwater Friendly | Great for harvesting and storing rainwater for reuse.
🔸Emergency-Ready | Can act as a backup water source for fire safety.
🔸Zero Maintenance | Install and forget – no frequent servicing needed.
🔸15-Year Warranty + Lifetime Support | Built to last with trusted after-sales service.

Brand P4 INTERNATIONAL
Brand Category Underground Water Storage Tank
Colour Golden Yellow | Blue
Weight
Insulation Layer 4 Layers
Base Shape Cylindrical

1. Food-Grade Tested Certificate – confirms the tank’s inner layer is safe for drinking water (provided upon request).
2. Important: Please read all installation guidelines carefully before setup to ensure proper and safe installation.
3. Installation by trained professionals is recommended to avoid damage and ensure warranty coverage.
4. For certifications and documents, kindly contact our support team or request through the inquiry form.

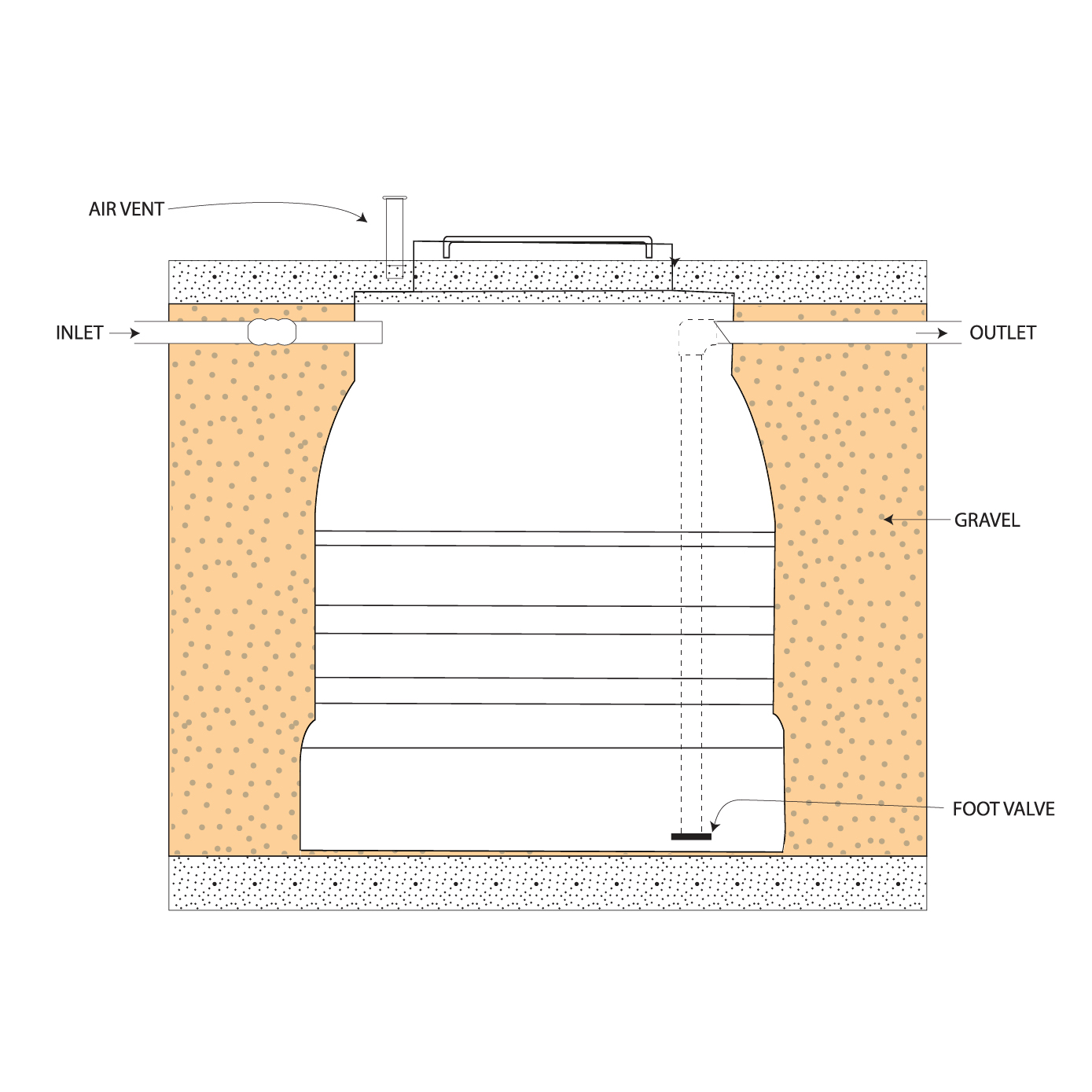

Ensure the water tank is installed on a level, rigid, and clean surface with full bottom support to avoid structural stress. For smaller tanks (up to 500L), two people can lift by hand. For larger tanks, use a lifting rope and ensure full support from the bottom. Avoid rolling on rough surfaces or dragging, as it may lead to abrasion or cracks. Always use a protective sheet under and around the tank during handling and transport.
For pipe fittings, use a multi-saw cutter (up to 2" diameter) or a drill for larger holes. First, determine the required hole size and mark the center below the top pocket, centrally on the tank’s side wall. Draw the cut line clearly, then carefully cut to avoid structural damage. Do not use chisels, as this may cause cracks or weaken the tank surface, leading to long-term issues.

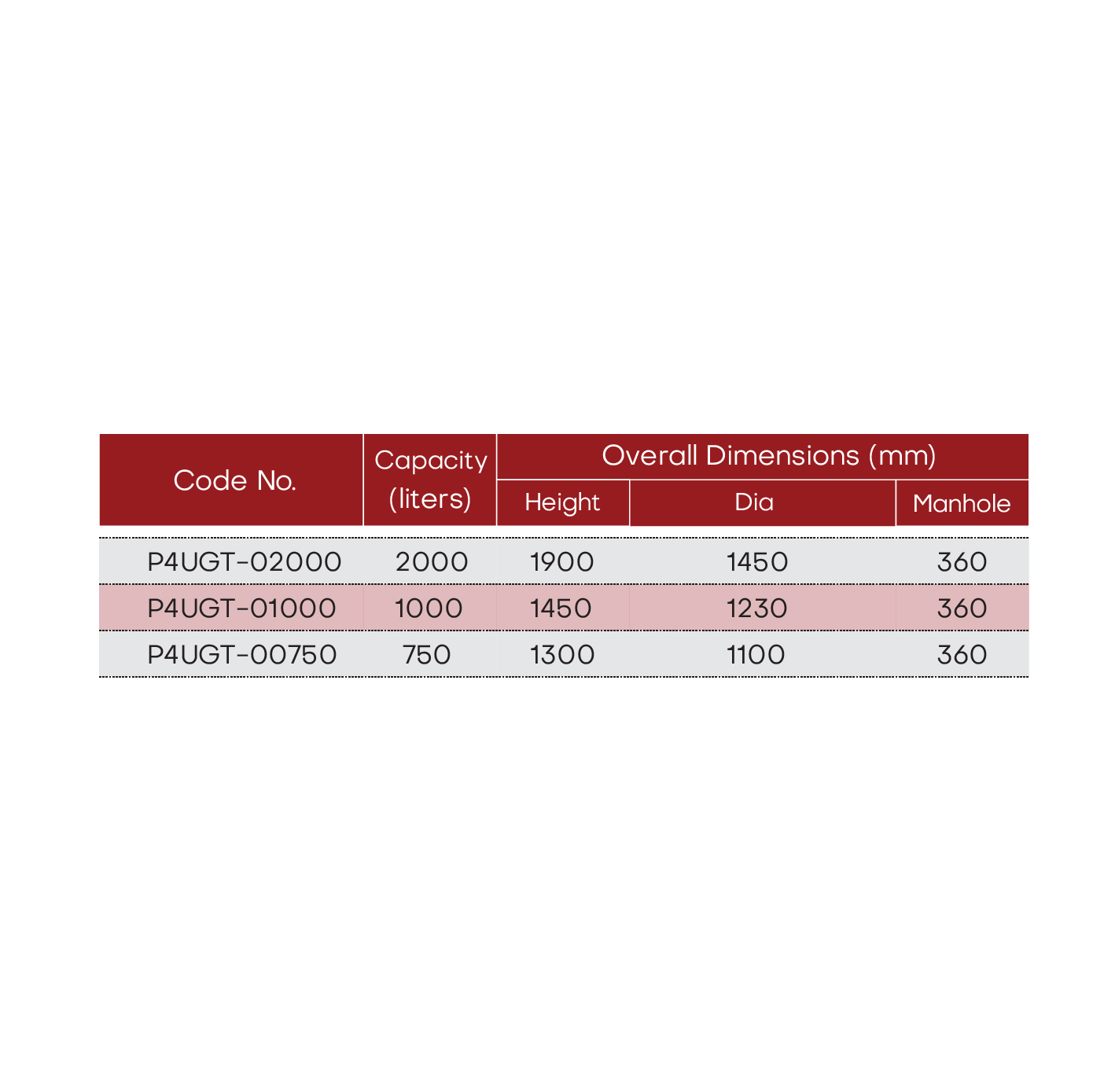

Always use the recommended pipe sizes based on tank capacity (refer to the technical chart). Fit the connection using rubber gaskets and secure with two check nuts from both sides for a tight seal. Avoid direct connection from the pump to the tank. Ensure the entire pipeline is well-supported and there is no tension on the fittings. Use only high-quality fittings and tools to avoid leaks or tank damage.
✔ Keep the tank lid closed at all times to prevent dust and insects. ✔ Maintain water temperature between 10°C and 60°C for optimal performance. ✔ Use ROHS-tested and certified food-grade tools when needed. ✔ Always check all joints and pipes before using the tank. ✔ Provide correct overflow and inlet positioning to utilize full tank capacity. ✔ Use only approved tools like multi-saw cutters or drills for hole creation.
✖ Don’t install the tank on a vibrating, sloped, or uneven surface. ✖ Don’t use fittings larger than recommended in Table A, as it may weaken the tank. ✖ Don’t make direct pump connections, which may cause excess pressure damage. ✖ Don’t use hammer or chisel to make pipe holes – it may result in cracks. ✖ Don’t install overflow pipe below the inlet, as this prevents full tank capacity usage. ✖ Don’t ignore minor leaks – stop usage and contact customer support immediately.
Improper installation can void warranty coverage. P4 International tanks are built using UV-stabilized LLDPE and are suitable for indoor and outdoor use. If any leak or damage occurs, stop using the tank immediately and contact P4 Customer Care. Repair attempts by untrained personnel may void warranty terms. Failure to follow installation instructions can lead to permanent damage or tank failure and will be the customer’s responsibility.
