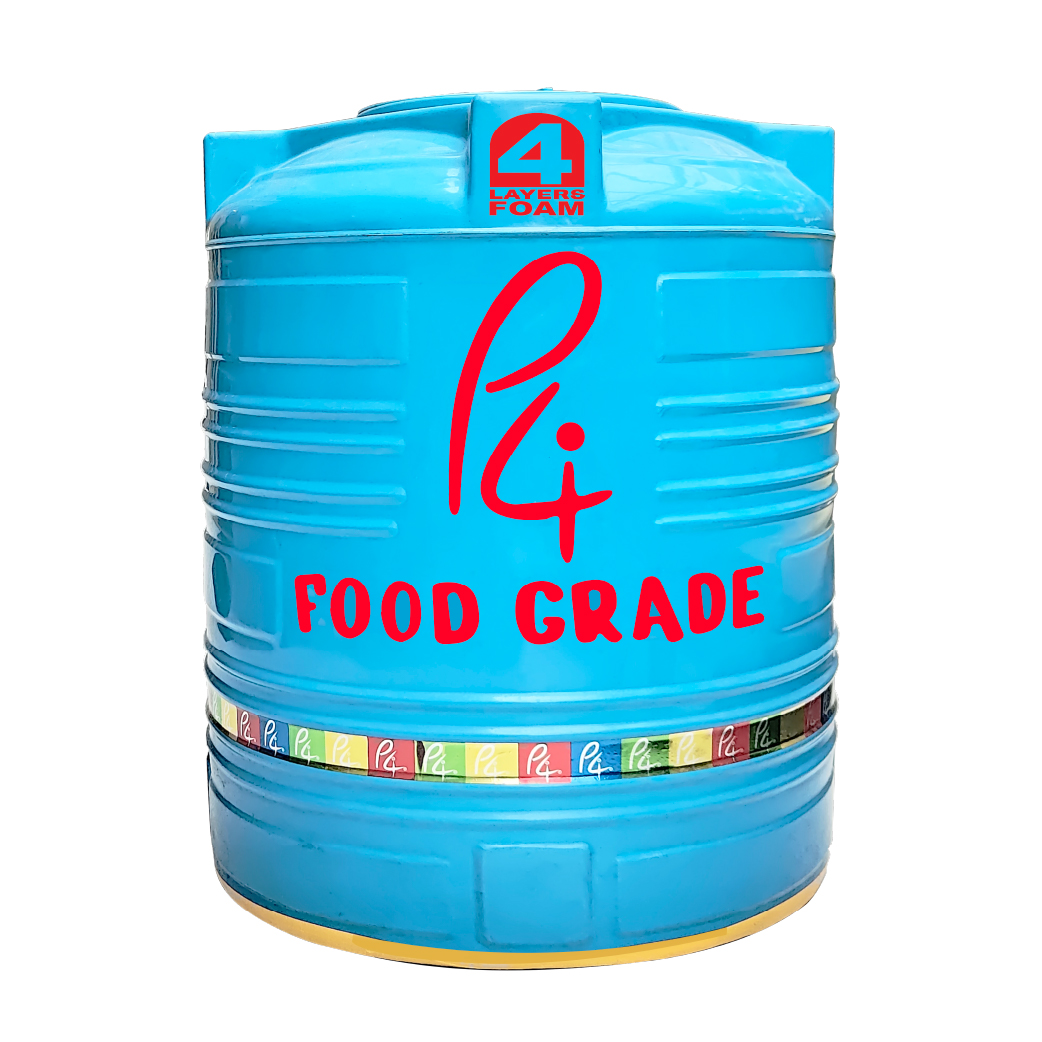

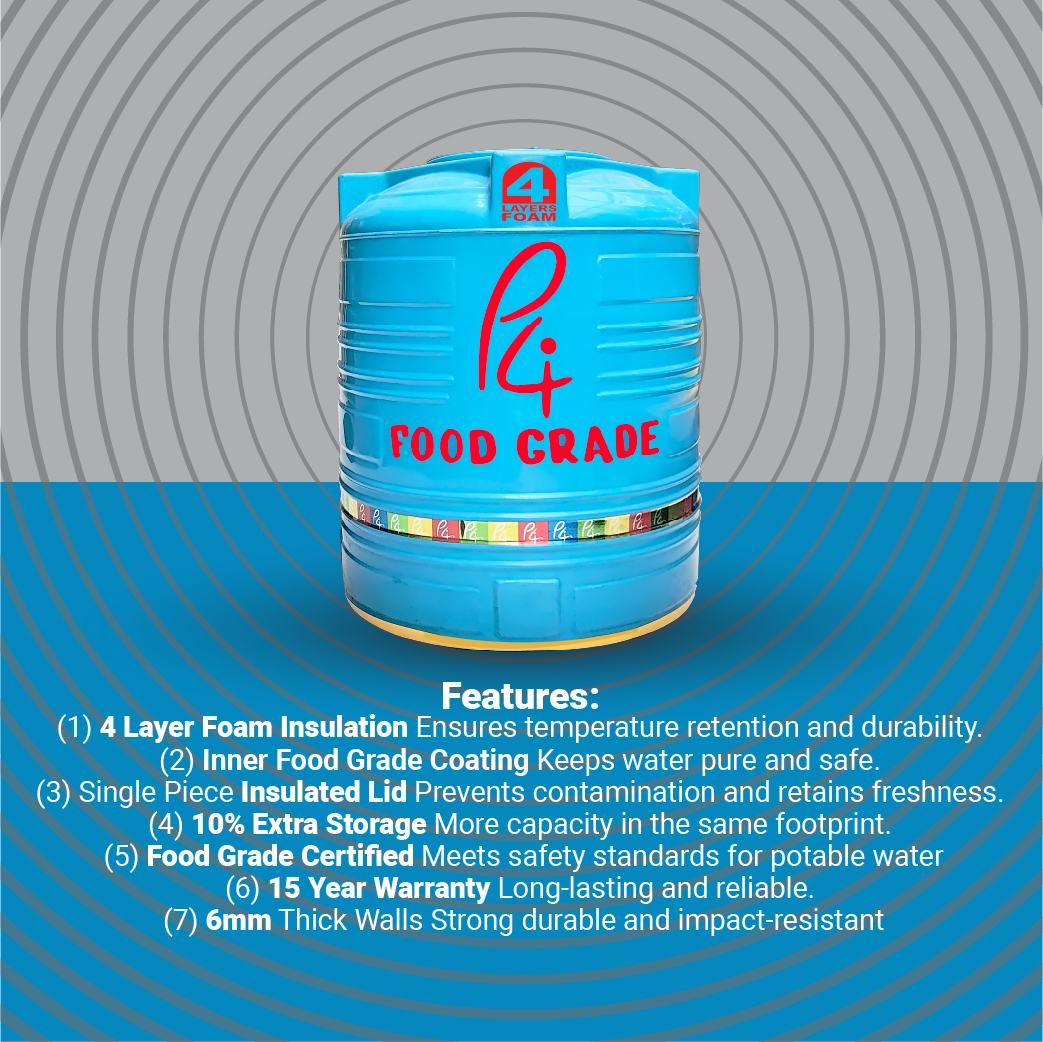

P4 FOOD GRADE® 4 Layer Foam Insulation Water Tank
P4 FOOD GRADE® 4 Layer Foam Insulation Water Tank - Image 2
P4 FOOD GRADE® 4 Layer Foam Insulation Water Tank - Image 3
P4 FOOD GRADE® 4 Layer Foam Insulation Water Tank - Image 4

P4 FOOD GRADE® 4 Layer Foam Insulation Water Tank

QUALITY ASSURANCE

All P4 products like Cock, Mixer, Shower go through three stage quality check process wherein we thoroughly inspect its tear strength, internal mechanism longevity, color adaptation & water quality.

QUALITY ASSURANCE

All P4 products like Cock, Mixer, Shower go through three stage quality check process wherein we thoroughly inspect its tear strength, internal mechanism longevity, color adaptation & water quality.

  • 4-Layer Foam Insulation | Ensures excellent temperature retention and boosts overall durability of the water tank.
  • Inner Food Grade Coating | Keeps stored water pure, safe, and suitable for drinking by preventing contamination.
  • Single-Piece Insulated Lid | Prevents dust, insects, and pollutants while maintaining water freshness.
  • Food-Grade Certified | Complies with IS standards for potable water, ensuring water safety and hygiene.
  • 15-Year Warranty | Guaranteed performance and long-term peace of mind with manufacturer support.
  • 6mm Thick Walls | Heavy-duty construction ensures high impact resistance and longer lifespan of the tank.
SKU: P4-INT-GY-1 Category: Brand:

Share

ENQUIRE FOR PRICE
REQUEST A CALL BACK
PRODUCT BROCHURE

4-Layer Foam Insulation

Retains water temperature and enhances overall durability.

Inner Food-Grade Coating

Maintains purity and ensures the stored water is safe for consumption.

Single-Piece Insulated Lid

Prevents external contamination and helps retain water freshness.

10% Extra Storage

Offers additional capacity without increasing the tank's footprint.

Food-Grade Certified

Complies with safety regulations for potable water usage.

15-Year Warranty

Assurance of long-term performance and peace of mind.

🔸 4-Layer Foam Insulation | Superior insulation retains water temperature and boosts tank durability in all seasons.
🔸 Inner Food-Grade Coating | Keeps water clean, safe, and free from harmful contaminants — perfect for drinking.
🔸 Single-Piece Insulated Lid | Airtight, tamper-proof lid design prevents dust, insects, and external pollutants.
🔸 10% Extra Storage Capacity | Store more water in the same footprint — a smart choice for high-demand usage.
🔸 Certified Food-Grade Safety | Meets national standards for potable water, ensuring total peace of mind.
🔸 15-Year Warranty Assurance | Long-lasting performance backed by an industry-leading warranty.
🔸 6mm Thick Tank Walls | Extra-thick body delivers unmatched strength, impact resistance, and extended lifespan.

Brand P4 FOOD GRADE
Brand Category Water Storage Tank
Colour BLUE, GREEN, WHITE

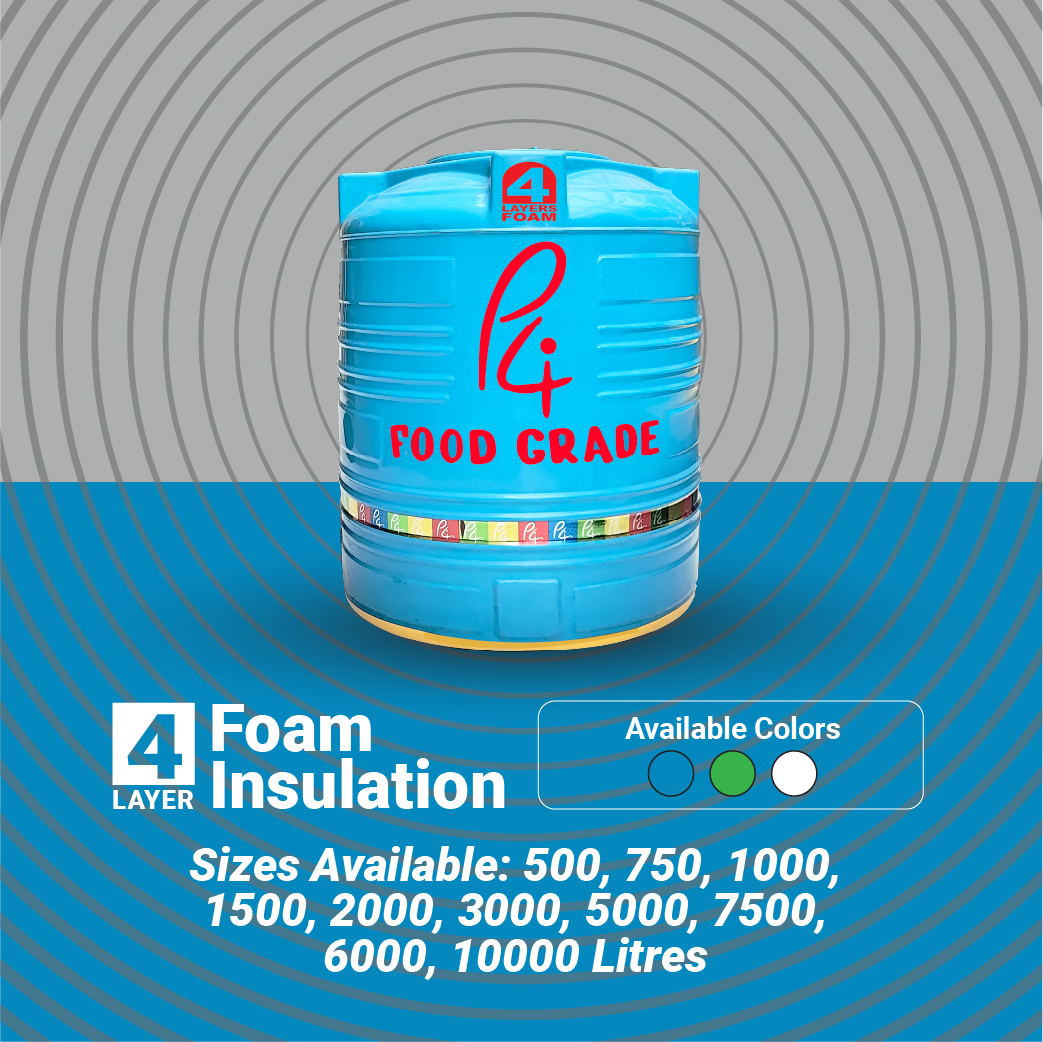

Capacity Available 500 Litre, 750 Litre, 1000 Litre, 2000 Litre, 5000 Litre
Insulation Layer 4 Layers
Base Shape Cylindrical

Ensure the water tank is installed on a level, rigid, and clean surface with full bottom support to avoid structural stress. For smaller tanks (up to 500L), two people can lift by hand. For larger tanks, use a lifting rope and ensure full support from the bottom. Avoid rolling on rough surfaces or dragging, as it may lead to abrasion or cracks. Always use a protective sheet under and around the tank during handling and transport.
For pipe fittings, use a multi-saw cutter (up to 2" diameter) or a drill for larger holes. First, determine the required hole size and mark the center below the top pocket, centrally on the tank’s side wall. Draw the cut line clearly, then carefully cut to avoid structural damage. Do not use chisels, as this may cause cracks or weaken the tank surface, leading to long-term issues.
Always use the recommended pipe sizes based on tank capacity (refer to the technical chart). Fit the connection using rubber gaskets and secure with two check nuts from both sides for a tight seal. Avoid direct connection from the pump to the tank. Ensure the entire pipeline is well-supported and there is no tension on the fittings. Use only high-quality fittings and tools to avoid leaks or tank damage.
✔ Keep the tank lid closed at all times to prevent dust and insects. ✔ Maintain water temperature between 10°C and 60°C for optimal performance. ✔ Use ROHS-tested and certified food-grade tools when needed. ✔ Always check all joints and pipes before using the tank. ✔ Provide correct overflow and inlet positioning to utilize full tank capacity. ✔ Use only approved tools like multi-saw cutters or drills for hole creation.
✖ Don’t install the tank on a vibrating, sloped, or uneven surface. ✖ Don’t use fittings larger than recommended in Table A, as it may weaken the tank. ✖ Don’t make direct pump connections, which may cause excess pressure damage. ✖ Don’t use hammer or chisel to make pipe holes – it may result in cracks. ✖ Don’t install overflow pipe below the inlet, as this prevents full tank capacity usage. ✖ Don’t ignore minor leaks – stop usage and contact customer support immediately.
Improper installation can void warranty coverage. P4 International tanks are built using UV-stabilized LLDPE and are suitable for indoor and outdoor use. If any leak or damage occurs, stop using the tank immediately and contact P4 Customer Care. Repair attempts by untrained personnel may void warranty terms. Failure to follow installation instructions can lead to permanent damage or tank failure and will be the customer’s responsibility.
